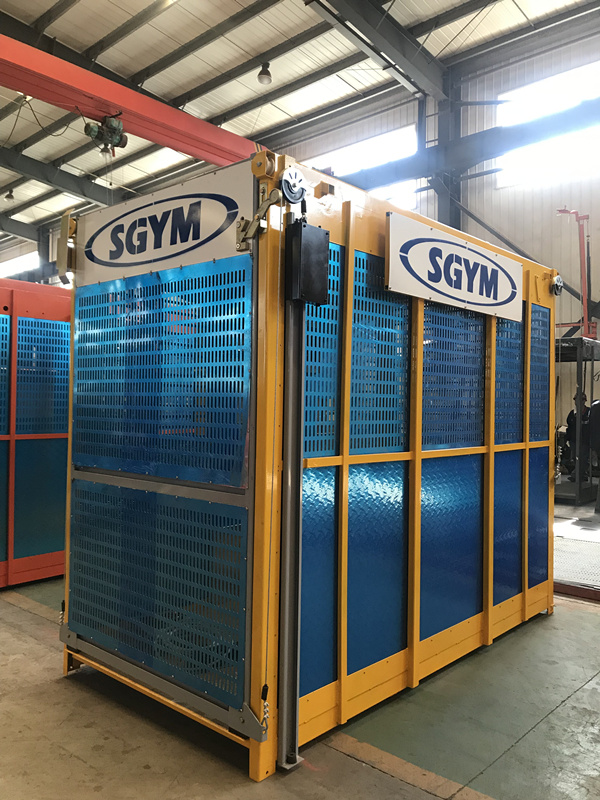

mideum speed passenger hoist

Keyword：

Category：

Medium Speed Construction Hoist

Detail

SGYM is a high-tech enterprise specialize in research and development innovation,manufacturing,sales and after-sale service,devoting to researching and designing for various building hoists,such as SC100, SC100-100TD(GD,GZ,GS); SC120,SC120-120TD(GD,GZ,GS); SC200, SC200-200TD(GD,GZ,GS); SC270, SC270-270GD, GZ, GS; SC320, SC320-320GD(GZ) and so on.Orders are custom made for customers and we accept OEM business.

Features

1. Running smoothly at starting and braking.

2. Small start-up current, energy saving.

3. Lower mechanical wear and the service life extension.

4. More reliable safety.

Technical Data:

Specification 产品类型	Type 产品型号	Lifting Capacity 额载	Lifiting Speed 提升速度	Motor Power 电机功率	VFD 变频器	Safety device 防坠器
Single cage without counter weight 单笼不带对重	SC 100 M	1000Kg	0～63m/min	3×13Kw	45Kw	SAJ 40-1.6
	SC 150 M	1500Kg	0～63m/min	3×15Kw	55Kw	SAJ 40-1.6
	SC 200 M	2000Kg	0～55m/min 0～63m/min 0～72m/min	2×23Kw(87Hz) 3×18.5Kw 3×19Kw(87Hz)	55Kw 75Kw 75Kw	SAJ 40-1.6 SAJ 50-1.6 SAJ 50-1.6
	SC200H	2000Kg	0～80m/min	3×23Kw	75KW	SAJ50-1.6
Twin cages without counter weight 双笼不带对重	SC 100/100 M	1000Kg×2EA	0～63m/min	3×13Kw×2EA	45Kw	SAJ 40-1.6
	SC 150/150 M	1500Kg×2EA	0～63m/min	3×15Kw×2EA	55Kw	SAJ 40-1.6
	SC 200/200 M	2000Kg×2EA	0～58m/min 0～63m/min 0～72m/min	2×23Kw×2EA 2×26Kw×2EA 3×18.5Kw×2EA 3×19Kw×2EA	55Kw 55Kw 75Kw 75Kw	SAJ 40-1.6 SAJ 50-1.6 SAJ 50-1.6
	SC200/200H	2000Kg×2EA	0～80m/min	3×23Kw×2EA	75KW	SAJ50-1.6

Application :

1. Vertical transport for construction of high building.

2. Used in Power station boiler.

3. Vertical transport for steel construction.
