low speed passenger hoist

Keyword：

Category：

Low Speed Construction Hoist

Detail

SGYM is a high-tech enterprise specialize in research and development innovation,manufacturing,sales and after-sale service,devoting to researching and designing for various building hoists,such as SC100, SC100-100TD(GD,GZ,GS); SC120,SC120-120TD(GD,GZ,GS); SC200, SC200-200TD(GD,GZ,GS); SC270, SC270-270GD, GZ, GS; SC320, SC320-320GD(GZ) and so on.Orders are custom made for customers and we accept OEM business.

Features

1. Running smoothly at starting and braking.

2. Small start-up current, energy saving.

3. Lower mechanical wear and the service life extension.

TECHNICAL DATA:

Specification 产品类型	Type 产品型号	Lifting Capacity 额载	Lifiting Speed 提升速度	Motor Power 电机功率	VFD 变频器	Safety device 防坠器
Single cage without counter weight 单笼不带对重	SC 100 L	1000Kg	0～40m/min 0～45m/min	2×11Kw 2×13Kw	30Kw	SAJ 30-1.2
	SC 150 L	1500Kg	0～40m/min 0～45m/min	2×13Kw 2×15Kw	30Kw 37Kw	SAJ 40-1.2
	SC 200 L	2000Kg	0～33m/min 0～40m/min 0～45m/min	2×13Kw 3×11Kw 3×13Kw	30Kw 37Kw 45Kw	SAJ 40-1.2
	SC300L	3000Kg×2EA	0～45m/min	3×15Kw×2EA	55Kw×2EA	SAJ 40-1.2
Twin cages without counter weight 双笼不带对重	SC 100/100 L	1000Kg×2EA	0～40m/min 0～45m/min	2×11Kw×2EA 2×13Kw×2EA	30Kw×2EA	SAJ 30-1.2
	SC 150/150 L	1500Kg×2EA	0～40m/min 0～45m/min	2×13Kw×2EA 2×15Kw×2EA	30Kw×2EA 37Kw×2EA	SAJ 40-1.2
	SC 200/200 L	2000Kg×2EA	0～33m/min 0～40m/min 0～45m/min	2×13Kw×2EA 3×11Kw×2EA 3×13Kw×2EA	30Kw×2EA 37Kw×2EA 45Kw×2EA	SAJ 40-1.2
	SC300/300L	3000Kg×2EA	0～45m/min	3×15Kw×2EA	55Kw×2EA	SAJ 40-1.2

Standard cage inner size： 3000×1500×2200mm(L×B×H)

Mast sectional size： 650×650mm

Maximum Lifting Height: 300m

Power Source: 380V～440V，50Hz/ 60Hz

APPLICATION:

1. Vertical transport for construction of high building.

2. Used in Power station boiler.

3. Vertical transport for steel construction.

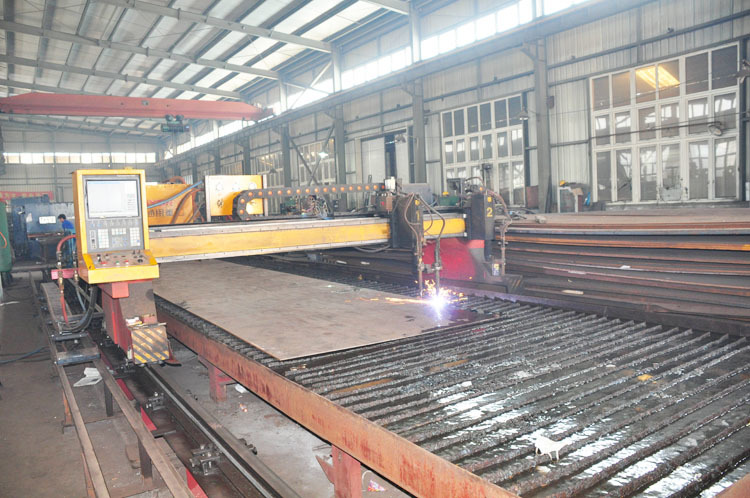

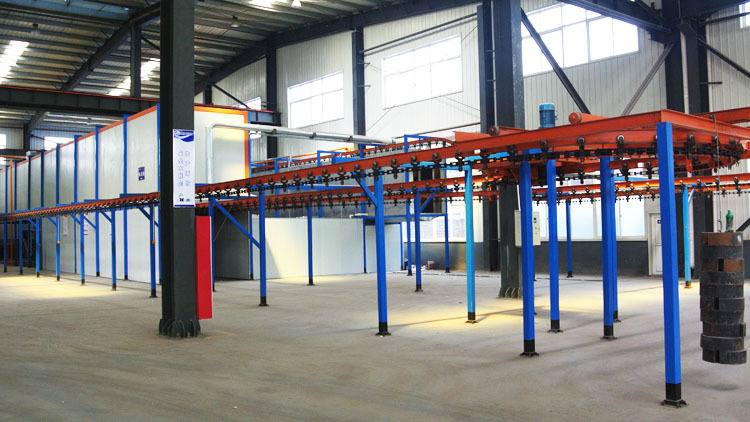

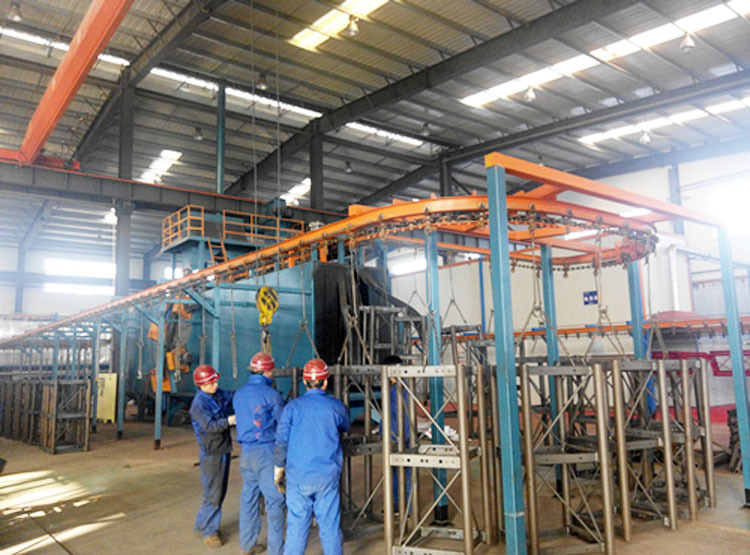

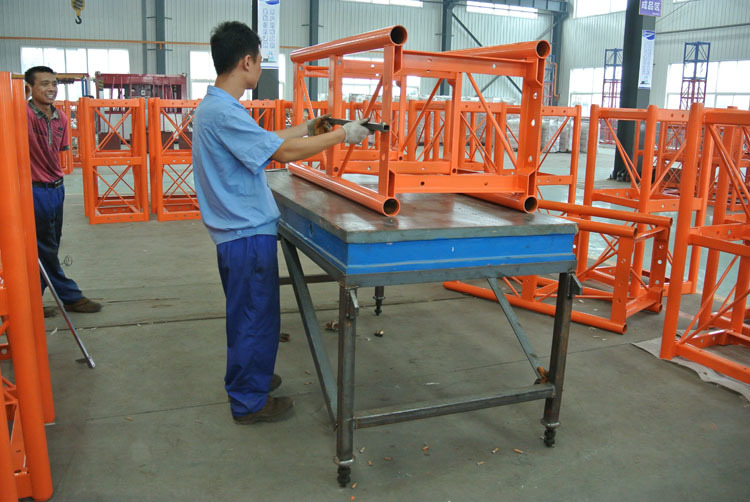

Manufacturing process and production equipment

Cut down

SGYM SGYM SGYM SGYM SGYM SGYM
