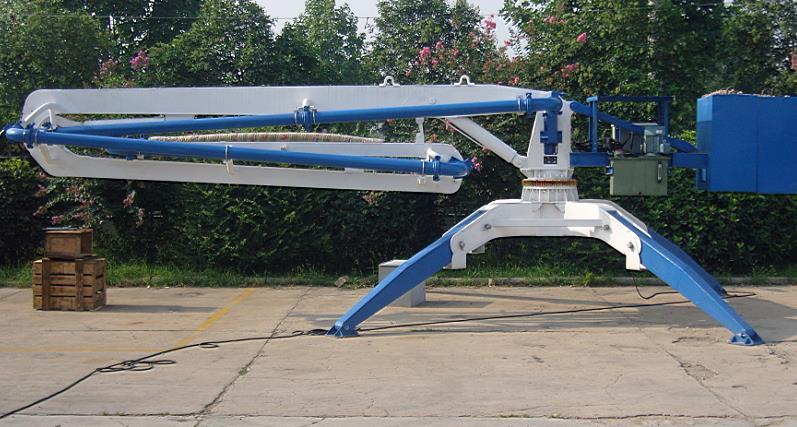

SHGY15 Mobile Type Concrete Hydraulic Placing Boom

Keyword：

Category：

Placing Boom

Detail

Product features:

1. Inner hydraulic oil tank renders a compact structure and free swivel. It gives big convenient for installation, dismounting and maintenance, which ensure longer service life and excellent performance.

2. Original Germany Rexroth oil pump and valves group increase reliability of placing boom.

3. The key components of electrical system are from world famous brand such as Japanese Omron and France Schneider ensures safety and stability.

4. The computer optimized designed arced boom structure are made of the high strengthened steel plate by the scientific production craft. The rigidity and the intensity are extremely increased.

5. Original Italy Comer reducer features with sufficient torsion, smooth running and reliable operation.

主要技术参数Main technical parameters

型号Model			HGY15
性能Permance	布料臂长Horizontal reach（m）		15m
	回转角度Rotation（°）		360°
	俯仰角度Elevation angle(°)		0～90°
	回转制动Slewing brake		常闭 Normally closed
	工作环境温度Working environment temperature		-5℃～40℃
	重量Weight(T)	自重Weithout counterweight	3.23
		带配重Counterweight	5.43
	支腿跨距Outrigger Span		4000×4000
控制系统Control System	电源Power		380V/50HZ
	功率Output（kW）		4
	防护等级Ptotection grade		IP54
	绝缘等级Insulation clas		F
	系统压力System Pressure(MPa)		20
	控制方式Control mode		有线/无线Cable/Radio remote
臂架Boom	输送管清洗方式Duct cleaning method		水洗/干洗Wash/Dry cleaning
	臂架打开方式Boom open way		三节R型Three R
	输送管径Inner diameter of delivery pipe（mm）		Φ125
	末端软管End rubber hose（m）		3
	长度Length（mm）		6000/5000/4000
	转角Corner（°）		90/180/180
