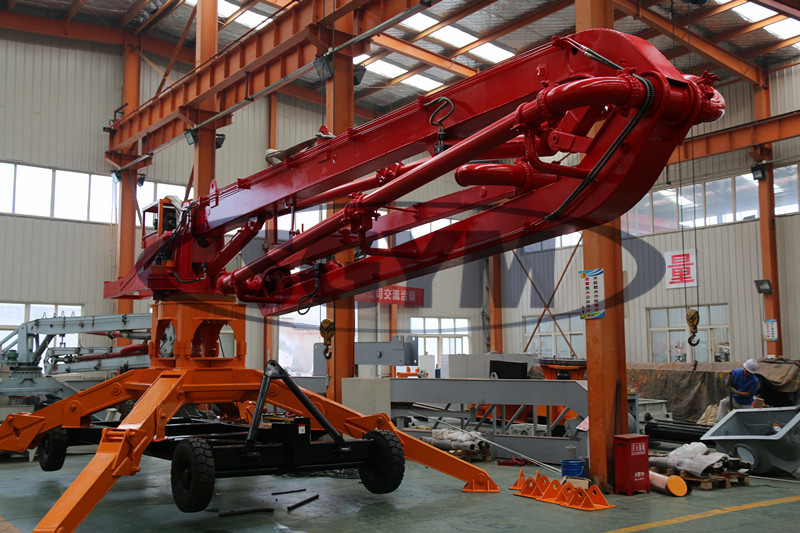

SHGY17/3 Mobile Concrete Placing Boom

Keyword：

Category：

Placing Boom

Detail

Product features:

1. Inner hydraulic oil tank renders a compact structure and free swivel. It gives big convenient for installation, dismounting and maintenance, which ensure longer service life and excellent performance.

2. Original Germany Rexroth oil pump and valves group increase reliability of placing boom.

3. The key components of electrical system are from world famous brand such as Japanese Omron and France Schneider ensures safety and stability.

4. The computer optimized designed arced boom structure are made of the high strengthened steel plate by the scientific production craft. The rigidity and the intensity are extremely increased.

5. Original Italy Comer reducer features with sufficient torsion, smooth running and reliable operation.

Model：HGY17/3

Meaning of symbolic：H——Concrete

G——Placing boom

Y——Hydraulic

17——Radius of boom 17m

3——Arm number 3

Technical parameters:

Diameter of Concrete delivery pipeline ：Φ125mm

Radius of placing boom： 17m

Pitching range of placing boom： -4°~90°

Swing range： 360°

Length of end hose： 3m

Power： 5.5KW

Pressure： 25Mpa

Rotating speed： 0.32r/min

Weight 5000kg

Counterweight 2200kg

Total weight： 7200kg

Outrigger span 4230×4230mm

Boom length 6670/5720/4610mm

Voltage 380V/50HZ

Configuration

Motor	China famous brand
Wireless Remote Control	China famous brand
Filter	HYDAC or LIMING
Reduction Gears Hydraulic Motor	America White
Boom	Made by Co-nele
Oil Cylinder	SANY ZHONGXING
Multitandem Valve	Taiwan YOULI
Rubber Hose	American Gates
